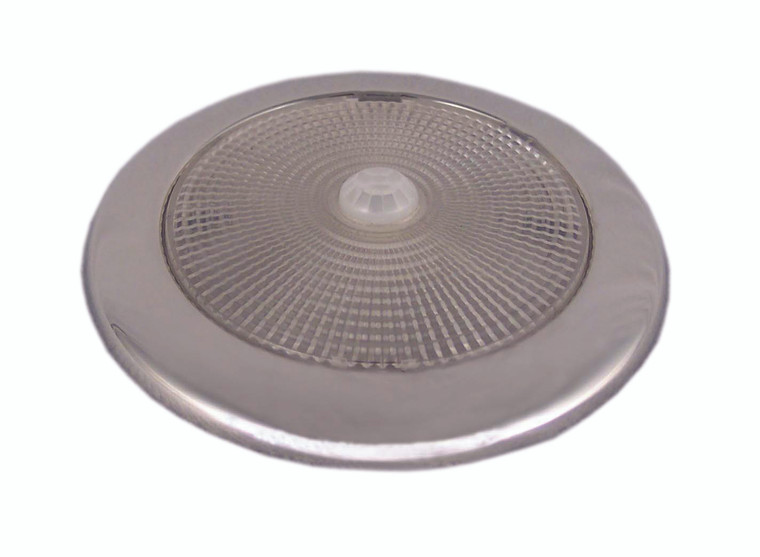

"Bright Slim" Large LED Ceiling Light (132mm)
"Bright Slim" Large LED Ceiling Light (132mm)
Broad Illumination. Intelligent Convenience.
The 132mm "Bright Slim" ceiling light is the ideal solution for larger interior spaces requiring consistent and broad light distribution. Featuring a premium S.S. 304 stainless steel rim and a low-profile surface-mount design, it combines high-end aesthetics with rugged marine-grade durability.
Equipped with 28 high-performance LEDs, this light delivers a clean, natural warm white glow (4000-4500K). The available SWH sensor version provides a smart, touchless experience—automatically illuminating your path as you move through the cabin, then switching off to conserve power.
Key Features
-
Extended Illumination: The larger 132mm footprint and 120° beam angle provide superior coverage for main cabins and larger deck areas.
-
Smart Motion Sensing (SWH): Integrated sensor with a 1-meter detection range and 40-second delay—perfect for heads, galleys, or companionways.
-
Refined Stainless Steel Finish: Polished S.S. 304 housing offers maximum corrosion resistance and a sleek, contemporary look.
-
Energy-Efficient Performance: Consumes only 2.26W while maintaining a steady 110-lumen output on 12V DC systems.
Technical Specifications
| Feature | Details |
| Material | S.S. 304 Housing, PC Lens |
| LED Type | 28 x Top "3528" LED |
| LED Lifetime | 50,000 hrs |
| Beam Angle | 120° |
| Color Temperature | 4000 - 4500K (Natural Warm White) |
| Effective Lumen | 110 LM |
| Wattage | 2.26W |
| Voltage | 12VDC |
| Rating | Splashproof |
| Packaging | 100 pcs / CTN |
Ordering Information
| Item No. | Sensor Switch | LED Configuration |
| 00602-WH | No | 28 x Warm White |
| 00602-SWH |
Yes (Motion + Auto Sensor Combo) |
28 x Warm White |
Sensor Details (00602-SWH):
-
Sensing Distance: 1M
-
Sensing Angle: 80-90°
-
Lighting Duration: 40 Seconds
